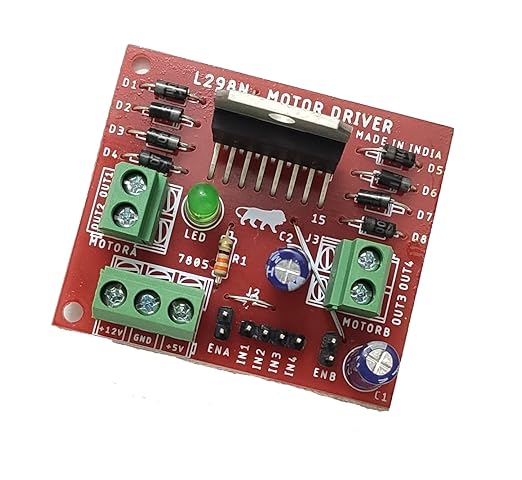

The Embeddinator L298N DC Motor Driver Module is a powerful and reliable dual H-bridge motor driver designed to control DC motors and stepper motors in robotics, automation, and embedded electronics projects. Built around the popular L298N motor driver IC, this module can independently drive two DC motors or a single bipolar stepper motor, making it highly versatile for mobile robots and motion control systems.

Supporting a wide motor supply voltage range from 5V to 35V, the L298N module can handle motor currents up to 2A per channel (peak). It features an onboard 5V voltage regulator, which can power the logic circuitry and, in some configurations, the microcontroller. The integrated heat sink and flyback diodes ensure safe and stable operation under load.

The module offers simple control using TTL logic signals, with separate direction and enable pins for each motor. PWM inputs allow precise speed control, while direction pins manage forward, reverse, and braking actions. This makes the module compatible with popular platforms such as Arduino, Raspberry Pi, STM32, AVR, and PIC microcontrollers.

Common applications include line-following robots, obstacle-avoiding robots, robotic arms, CNC machines, smart vehicles, and educational robotics kits. Durable, easy to interface, and widely supported, the Embeddinator L298N DC Motor Driver Module is an excellent choice for both beginners and professionals working on motor control projects.
